Device restart and Factory settings

Tutorial: Device restart and Factory settings

The mbNET is set to the following IP address in the factory (Factory settings when delivered):

  • IP address: 192.168.0.100
  • Subnet mask: 255.255.255.0

The mbNET is delivered with the following user data (User credentials for access to the mbNET Web Interface):

  • User name: admin

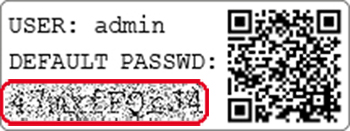

  • Password: The default password can be foundon the back of the device

Advice: The computer’s network settings must be changed accordingly


1. Device restart (Reset)

2. Load factory settings

3. Load factory settings at mbNET.rokey




1. Device restart (Reset)

Can be done directly on the device (mbNET) using the reset button:

For example, use a paper clip and press the Resetbutton on the mbNET.

The device will now restart.

The restart is complete once both the "Rdy" and "Pwr" LEDs light up.

2. Load factory settings

If you want to restore the mbNET to factory settings or you get asked by the support to do so, here is the description how to do it.


Notice

Before you configure the device to its factory settings, you should note the following:
- Save your configuration first. After restoring the factory settings, all of your settings/changes will bedeleted.
- The IP address of the device is reset to the original IP address (192.168.0.100). You may also need to modify the network settings of the configuration PC accordingly.
- The device password is reset to its individual default password. The default password can be foundon the back of the unit.
- No USB stick/storage medium should be connected to the device.
- The device must be ready for operation (Pwr + Rdy LEDs light up).



1. Press the "Reset" button or switch on the device.
2. Wait until LED "Rdy" blinks.


3. Now press and hold the "Dial Out" button  until "Fc4" LED lights up.





4. Press the "Dial Out" button(LED "Fc3" lights up).



5. Press the "Dial Out" button again (LED "Fc2" lights up).




6. Finally, press the "Dial Out" button one last time that the LED's "Fc4", "Fc3" and "Fc2" goes off.



The custom configuration is deleted now, the industrial router is reset to the factory settings and can be reconfigured.



Advice: The IP address of the industrial router is reset to 192.168.0.100. The computer’s network settings must be changed accordingly.

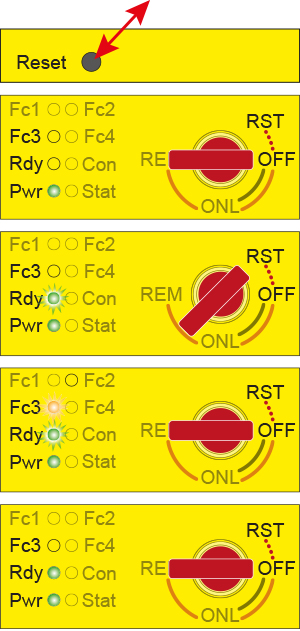

3. Load factory settings at mbNET.rokey

1. a) Switch on the mbNET or
    b) if the mbNET is ready for operation, press the
    Reset button.









2. When the LED Rdy flashes (green), turn the key switch - with
    the red key - to the switch position RST and hold this key position.











3. When LED Fc3 is flashing (orange), release the key







When both the Pwr and Rdy LEDs light up,
the mbNET is reset to its „factory settings
at the time of delivery“ and can/must be reconfigured



Advice: The IP address of the industrial router is reset to 192.168.0.100. The computer’s network settings must be changed accordingly.



Revision: V1.0
