Tutorial: Function and status LEDs

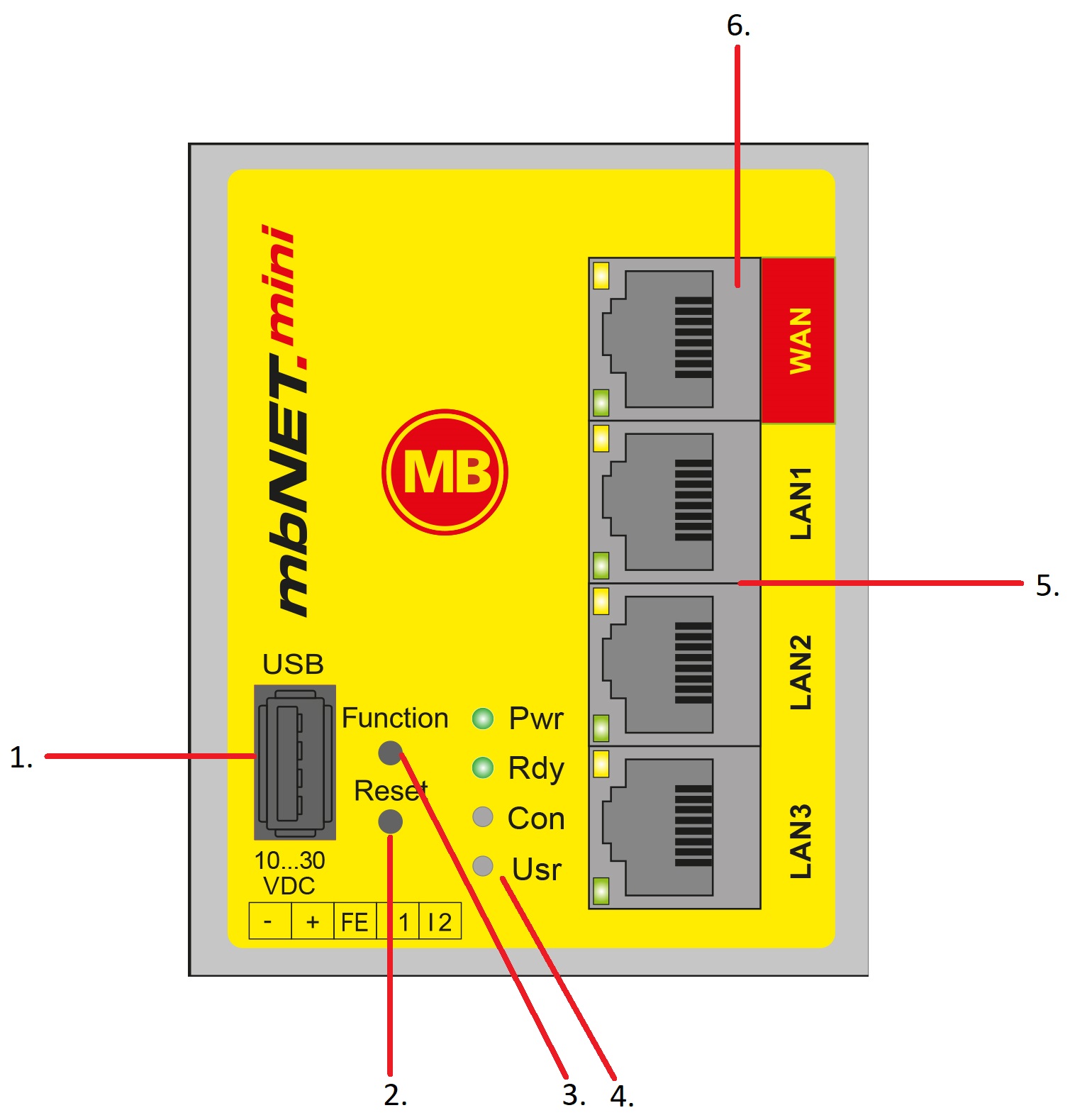

- USB interface
- Reset button
- Function button
- Function/Status LEDs
- LAN interfaces 1 – 3 (3 Port Switch) and LAN LEDs
- WAN interface und WAN LEDs
1. LEDs
| LED | LED-Farbe | LED-Status | Beschreibung |
|---|---|---|---|
| Pwr (Power) | Green | off | Device power source is switched off or device is not connected to power source/power pack. |
| on |
Power source is connected to terminal block and switched on. |
||
| Rdy (Ready) | Green | flashing | After the system has been checked and started (duration approx. 25 sec), the LED flashes for the duration of the starting up process (approx. 90 sec). |
| on | The device is ready for operation. | ||
|
Con (Connect) signals the connection status to the Internet and portalserver. |
Orange | off | No connection to Internet or portal. |
| flashing (3Hz) | Internet or VPN connection being established. | ||
| flashing (1,5Hz) | Connection to portal server has been established. | ||
| on | Connection to the Internet has been established. | ||
|
Usr (User) Light codes of the LED Usr |
Orange |
flashes briefly |
SIMPLY.connect is available but not activated. This means: The SIMPLY.connect * function is supported by the device. As long as the function is not activated by pressing the Function button, the device remains in “normal mode” and no further action takes place. If you do not want to use the Simply.connect * function, simply ignore this display. |
| on | SIMPLY.connect * is activated. SIMPLY.connect * is active after the function button has been pressed. The device tries to establish a connection to the SIMPLY.connect * server. |
||
|
Usr (User) Light codes of the LED Usr during operation |
Orange | flashing (3Hz) | Firmware on USB stick ready to be updated. |
| flashing (1,5Hz) | Portal configuration on USB stick ready to be transferred. | ||
| on | Firmware or configuration is being copied to the device. | ||
| WAN | Orange | flashing | Network data transfer active |
| Green | on | Transfer rate = 100 MBit/s. | |
| off | Transfer rate = 10 MBit/s. | ||
| LAN | Orange | flashing | Network data transfer active |
| Green | on | Transfer rate = 100 MBit/s | |
| off | Transfer rate = 10 MBit/s |
* SIMPLY.connect is a web application that supports you when creating a device (industrial router mbNET) in the Remote Service Portal mbCONNECT24.
You can find more information about SIMPLY.connect on our website at: https://simply-connect.me
| Revision: V1.1 |
|---|
