#NR6V1 : S7 Email

Application-Note: #NR6V1 : S7 Email

Related Documents:

  • Application-Note: #NR0V1 : Get Node-RED ready on my router
  • Application-Note: #NR1V1 : Hello World
  • https://nodered.org/docs/user-guide

This application describes how to read a command from an S7 to send an Email Message.

Please consider that this application is running on the router and can be accessed via http or https://router-ip:1880/ui. You can access it also from outside through an Web2Go link from your mbCONNECT24 account.

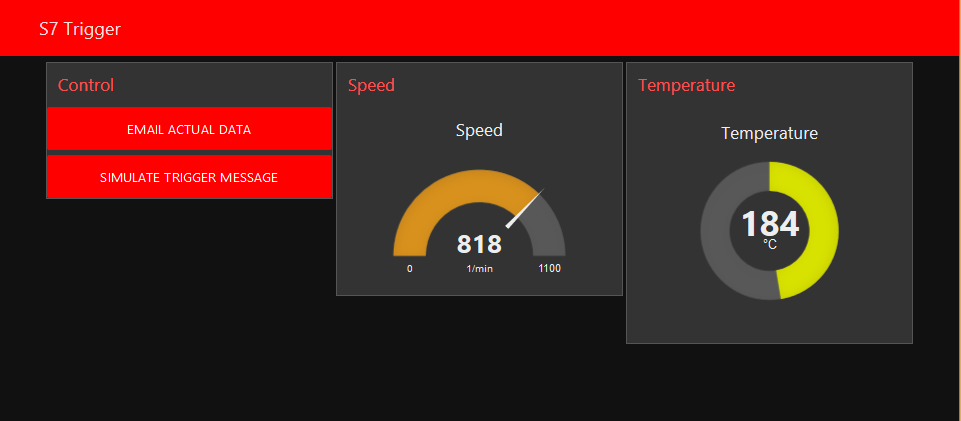

Description 1 – Dashboard

There are two buttons on the dashboard for simulation. One is to send an email containing the Speed and Tempereature values and the other button "Simulate Trigger Message" does simulate the trigger signal from the PLC which is doing the same sending an email.

The PLC can trigger an flag M200.0 to send an email containing the Speed and Tempereature values and the trigger flag is reseted by our flow after sending.

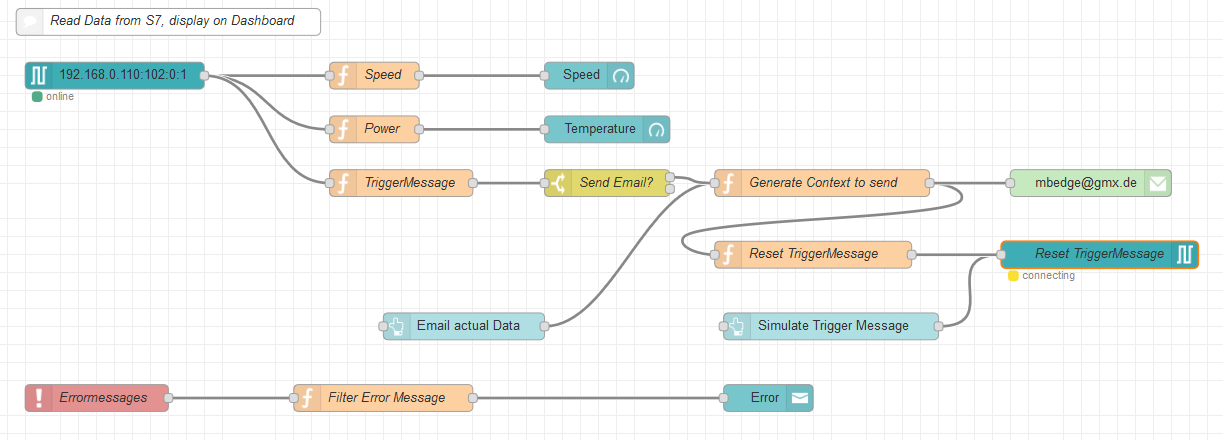

Description 2 – Flow

See below the Flow as a file to Import in your application.
