How can I add a Linux OS to my account?

This HowTo document describes how to add a Linux OS to rsp.mbCONNECT24 as an VPN-Client. This provides you the ability to connect a linux device, as a VPN-client, via a secure VPN tunnel worldwide.

1. First, login to your account at the portal rsp.mbCONNECT24 through mbDIALUP.

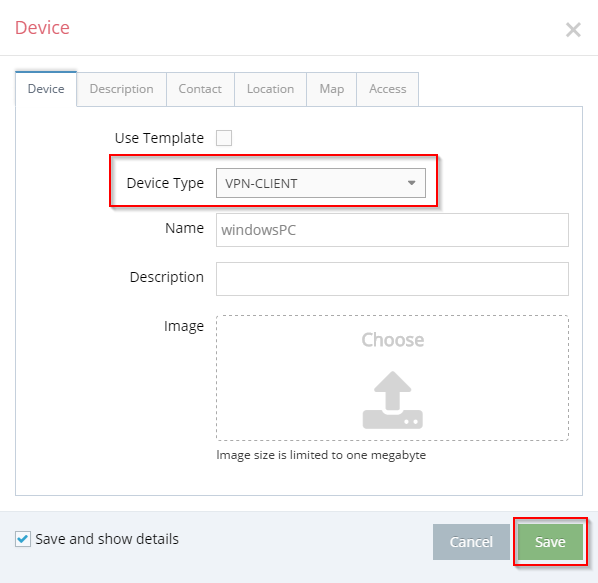

2. Add a new device with the symbol  in the rsp.mbCONNECT24 portal. As “Device Type”, the “VPN-CLIENT“ must be chosen:

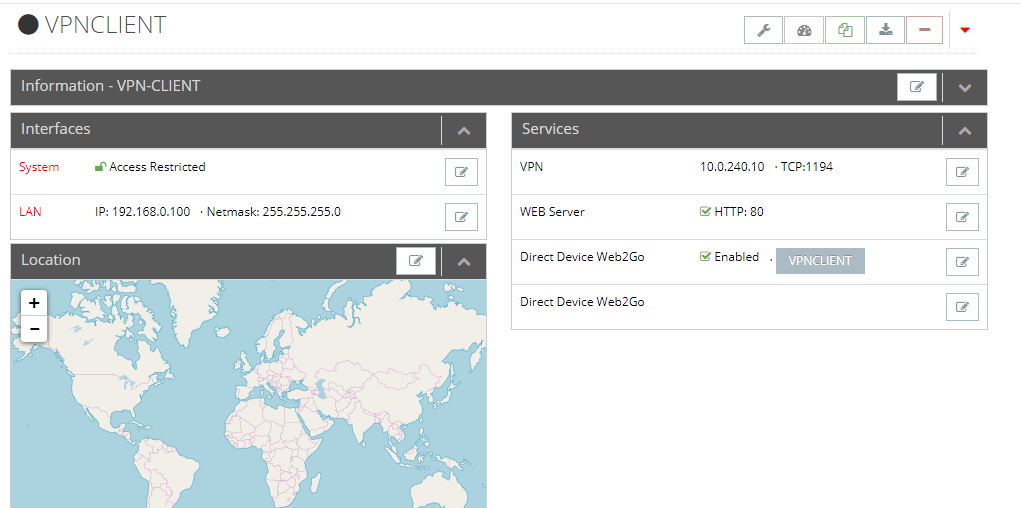

3. Check the LAN IP address of this VPN-client configuration, with the IP address of your Linux device. They must be the same. With the symbol  you can edit the LAN settings:

4. Download and save the configuration file of this device to the PC, by clicking on the  symbol:

5. Unzip the .zip – file “mbCONNECT24.zip“. You have the file “vpnclient.ovpn“ and the folder “private“, where the file “user_passw.auth“ is included, now.

6. Please copy the file “vpnclient.ovpn“ and the folder “private“, where the file “user_passw.auth“ is included, to the configuration folder of the software OpenVPN. At this example, the configuration folder is under “/etc/openvpn/client“.

If you want to route to uplink networks, like the LAN, you need to enable routing on your Linux system.

Troubleshoot:

The most know issue comes with the routing Table. In our example here the VPN-Client has its VPN-IP 10.0.240.10. In rsp.mbCONNECT24 Standard Account we would have then 10.0.240.1 as the Server-IP. Every traffic between mbDIALUP and the VPN-Client has to be routed through the Server-IP (Here 10.0.240.1).

If you see an error in your logging something like this:

openvpn[29108]: TUN/TAP TX queue length set to 100
openvpn[29108]: do_ifconfig, tt->did_ifconfig_ipv6_setup=0
openvpn[29108]: /sbin/ip link set dev tap10 up mtu 1500
openvpn[29108]: /sbin/ip addr add dev tap10 10.0.240.9/24 broadcast 10.0.240.255
openvpn[29108]: /sbin/ip route add 10.0.240.0/24 via 10.0.240.1
openvpn[29108]: ERROR: Linux route add command failed: external program exited with error status: 2
openvpn[29108]: /sbin/ip route add 10.0.1.1/32 via 10.0.240.1

it means that add routes to linux routing table was not successful. This is related to kernel version etc.

For solving this, you need to use "route-up" option of openvpn together with "route-noexec". Use the attached route-up script and put it on your linux system. Reference it at your vpn-config file like this:

"...

route-noexec
route-up /etc/openvpn/client/route_up.sh

..."

When the client is connected, your routing table must look like this:

10.0.1.1        10.0.240.1      255.255.255.255 UGH   0      0        0 tap10
10.0.240.0      10.0.240.1      255.255.255.0   UG    0      0        0 tap10
10.0.240.1      0.0.0.0         255.255.255.255 UH    0      0        0 tap10

and NOT like this:

10.0.1.1        10.0.240.1      255.255.255.255 UGH   0      0        0 tap10
10.0.240.0      0.0.0.0         255.255.255.0   U     0      0        0 tap10
10.0.240.1      0.0.0.0         255.255.255.255 UH    0      0        0 tap10

This basically means the VPN Network (in my case 10.0.240.0/24) must be routed to gateway 10.0.240.1 instead 0.0.0.0 with interface tap10.

The approach is to go from:

10.0.240.0      0.0.0.0         255.255.255.0   U     0      0        0 tap10

to

10.0.240.0      10.0.240.1      255.255.255.0   UG    0      0        0 tap10

If you are using the OpenVPN >= 2.4.5 then add "tls-cipher "DEFAULT:@SECLEVEL=0" " to your config-file.
