mbNET /.rokey: How can I use LAN segmentation?

How can I use LAN Segmentation?

Description

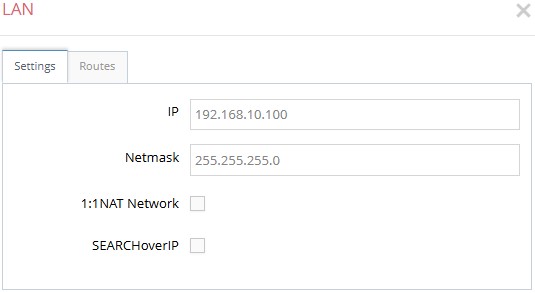

• Without LAN segmentation, all 4 LAN ports of the mbNET are equivalent and assigned to one network. The function acts as a 4-port switch. Data packets are passed between the 4 ports.

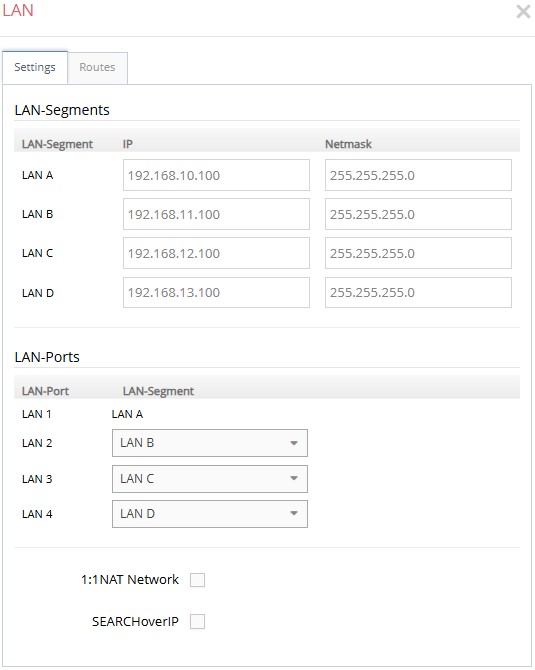

• With LAN segmentation activated, you can configure up to 4 LAN segments and assign them to the 4 LAN ports of the mbNET. Example:


  • The 4 LAN ports are assigned to different networks here. No data is passed between the networks.

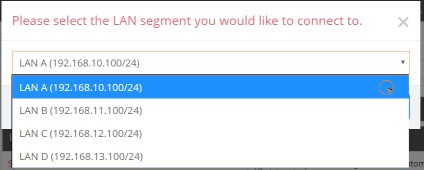

• When the VPN connection to the router is activated, you can select which segment the VPN tunnel will use.


Additional Settings Related to LAN Segmentation

• Firewall

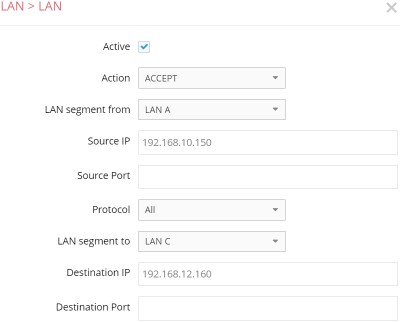

  If you want to allow controlled data exchange between segments, you can create the corresponding firewall rules:



  Please note that the network configuration on the LAN participants may need to be adjusted.
• Services

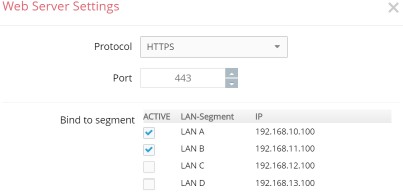

  With LAN segmentation active, certain services can be made accessible for specific LAN segments. Example:

  We recommend checking and adjusting these settings after any changes to the LAN segments.
