Tutorial: Web interface

If you use the mbNET as a classic router, the complete configuration and setup is performed via the Web interface of the device.

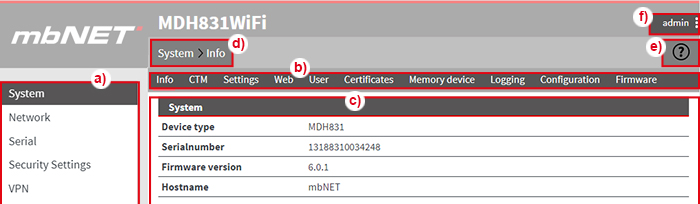

Main Navigation

First-level navigation for the operational user interface.

Subnavigation

Second-Level-Navigation

Display/work area

Here, you will perform all the configuration settings.

Breadcrumb navigation

Displays the user and branch within the user interface.

Help button

Link to online help for devices.

User navigation

Navigation for the administrative user interface

Log out	This is where you log out of the system properly. In addition, a timer is displayed. If there is no activity onthe surface, you will be logged out automatically after thepreset time (60 minutes). Clicking on the timer will resetit to 60 minutes.
Quick start/Administration	Link to "Quick Start"/to configuration Interface
Reboot	If you click on this link, mbNET will be restarted.
Language	Selection field for the user language of the web interface The options are: German and English

1. Access the mbNET Web interface using one of the LAN-interfaces.

2. Access the mbNET Web interface using the potal's Web2go option.

3. Using the Web interface sections Quickstart and Diagnosis

4. Finding the IMEI number

5. See also

1. Access the mbNET web interface using one of the LAN-interfaces.

This video shows how to access the web interface using one of the LAN-interfaces.

Please note:

From mbNET HW:02 you can access on the web interface only via HTTPS.
This means, you must enter "https://LAN-IP-of-mbNET" in the address bar of your browser.

You can find the individual password for the web interface access at the back side of the device.

2. Access the mbNET Web interface using the portal's Web2go-option

This video shows how to acces the Web Interface using the portal's WEB2go-option

3. Using the Web interface sections Quickstart and Diagnosis

The Web interface sections Quickstart and Diagnosis,enables to detect connection errors and determine the cause for the connection errors.

4. Finding the mbnet IMEI number.

The following procedure enables you to determine the IMEI number of a mbNET and mbNET.mini Web modem:

Open the Web interface:
- Video: Access the mbNET Web interface directly via a PC
- Video: Access the mbNET Web interface via Web2go

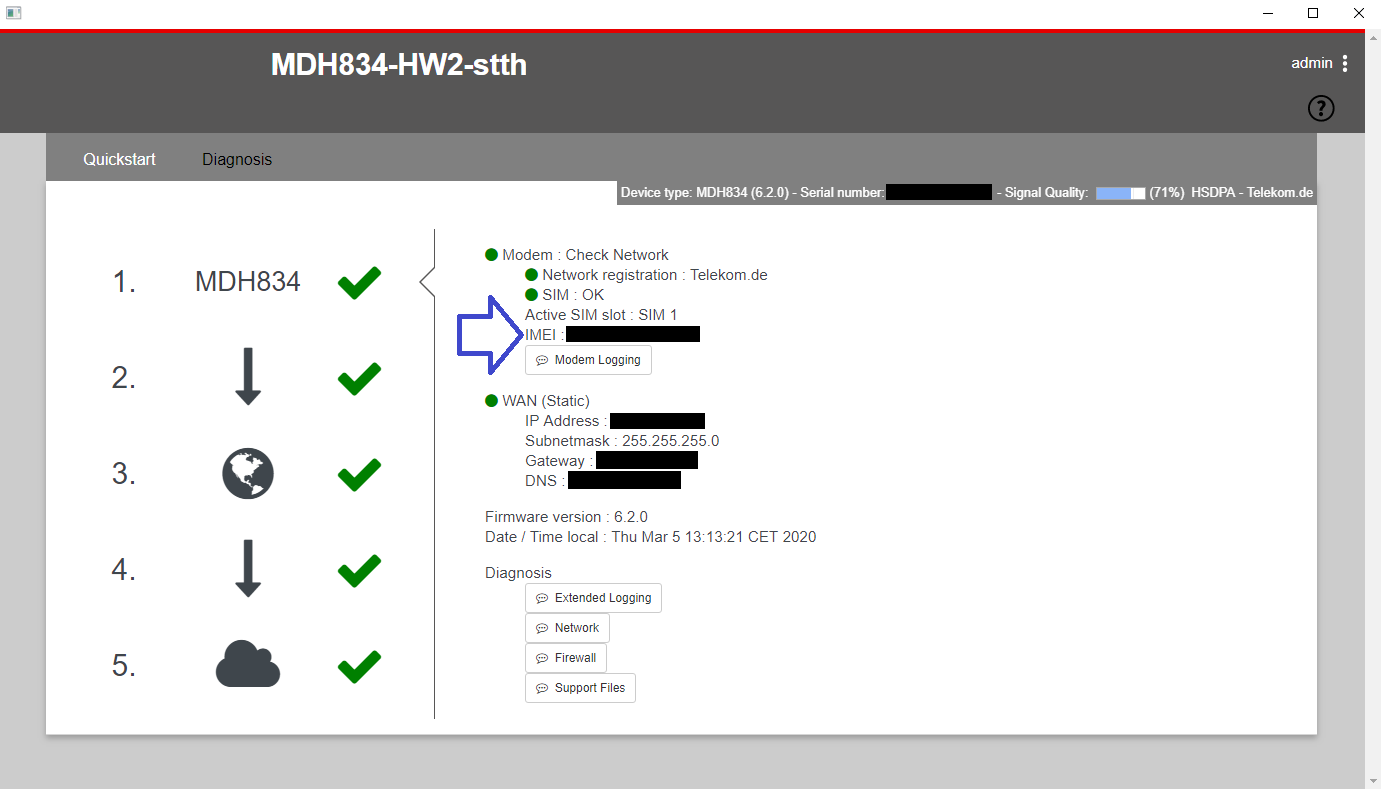

Read the IMEI number:

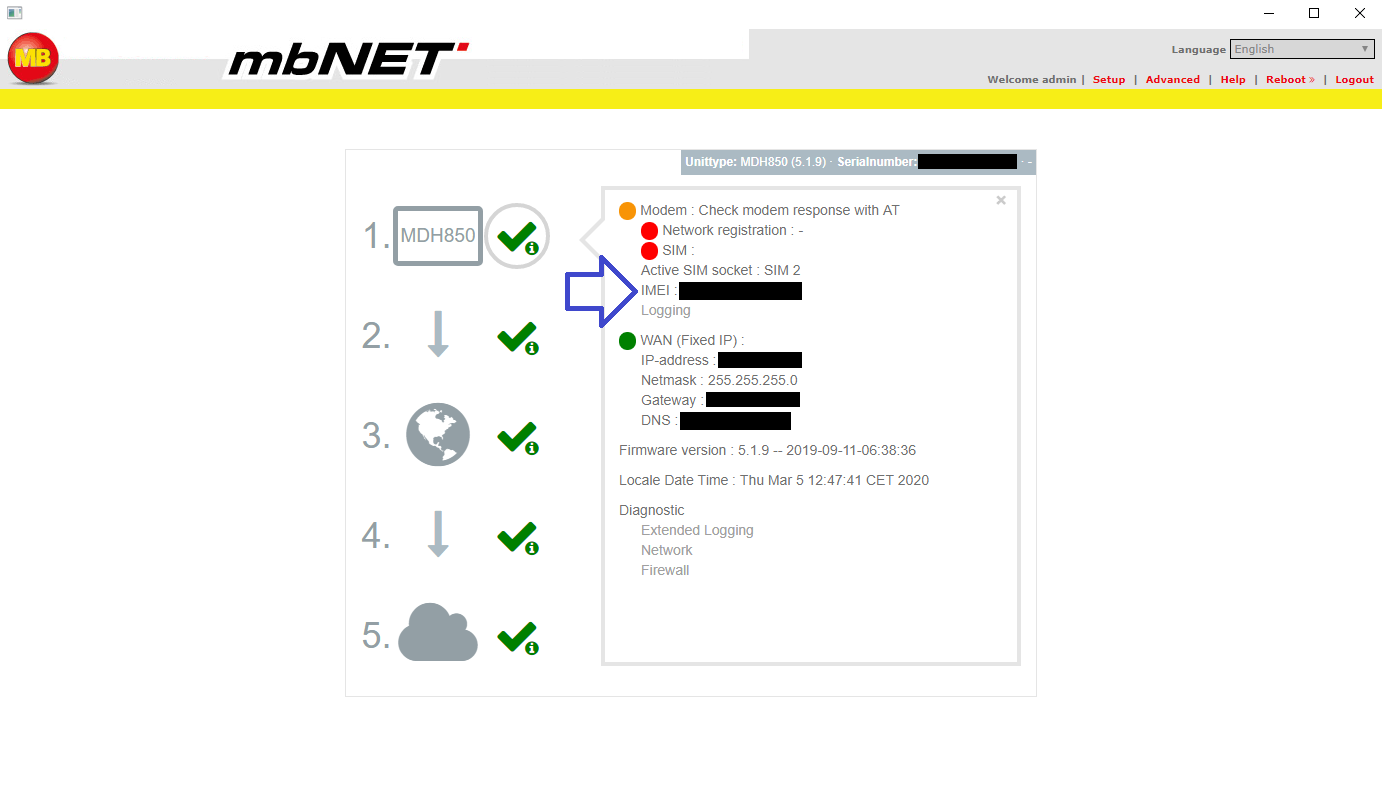

Some mbNET-devices like the mbNET.mini do not automatically show the IMEI-number. You need to click on the exclamation mark to make IMEI-number visible.

5. See also

Revision: V1.0
